Pallet Printers & Stripe Markers

Need to replace your ink arms, springs, hydraulics, wheel, etc? Each Claussen part is hand manufactured for your specific printer to easily repair your machine. Don’t have a Claussen printer? We custom build ink roll arms to convert your printer to use our one of a kind lumber ink. The longest lasting and most durable ink available.

Used Claussen Printer?

Were you lucky enough to land a Claussen manufactured printer at auction? We assist with rebuilding and re-installation of our Claussen printers. With our help we can have it quickly rebuilt and back to work. Our printers are known to outlive their mills and operators. Claussen is built to last and we stand behind that guarantee.

444 Stripe Markers, Pallet Printers, Nail Line Markers

Stripe Markers are used to place a continuous or an intermittent stripe on lumber, plywood, and panels.
Patented ink roll heater kits available for these units.
Unit is free spinning and board driven.
Can be mounted to stripe the end or the top of the printer. (horizontally or vertically).
Can be used as I.D. marker for end edging signaled by an optimizer.
Can be used for panels requiring nailer stripes.
Can be modified to apply grade stamps in smaller mills.
Velcro backed grade hubs and steel dies, various sizes available.
2 standard designs.
Custom applications welcome, please call for a quote.

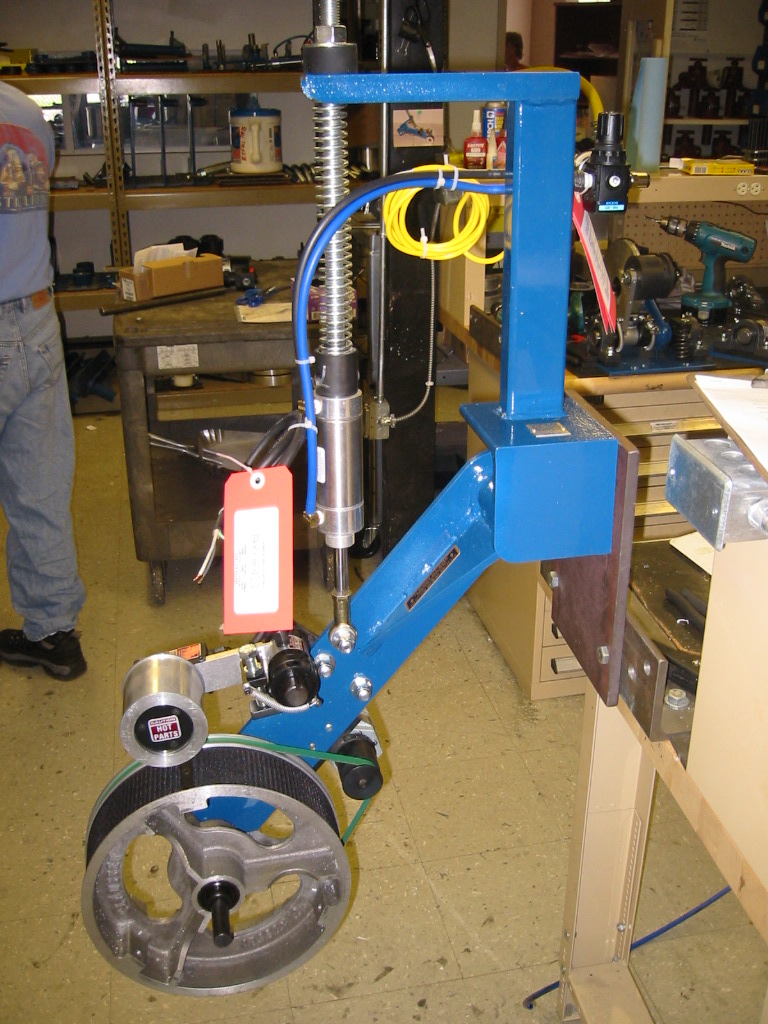

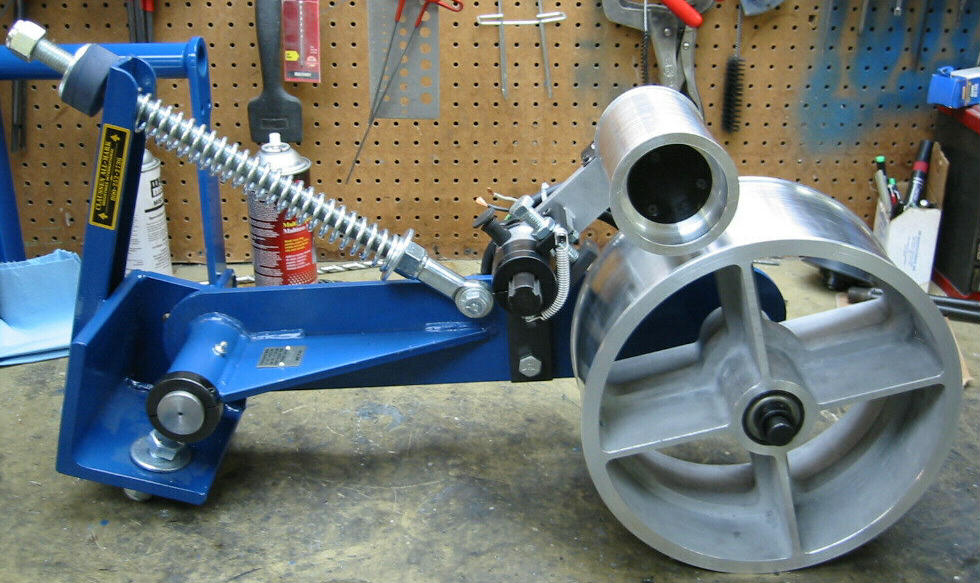

777 Air Actuated Stud Printer

Our stud printers for lumber grading is mounted on the main line before the stacker and gives you continuous grade stamp printing.
Board Driven or Air Driven
Can be mounted to print top, bottom, or sides of your lumber
Built custom for stud mill applications, HT and standard stamps
Air actuated via foot pedal, push button or mill PLC system.
Built with Claussen quality and durability
Standard size hubs 1-1/2″, 3″ & 6″, other sizes upon request

Manual Hand Stamp Roller

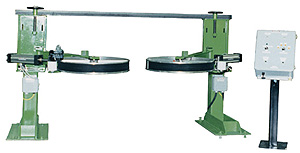

111 Single & Dual End-Edge Printers

Designed to print on the edge of lumber.
Grade printer is mounted on outside of planer.
Can print on one or both edges.
Can print company name, logo or variable information
Capable of printing on any size lumber and any length lumber
